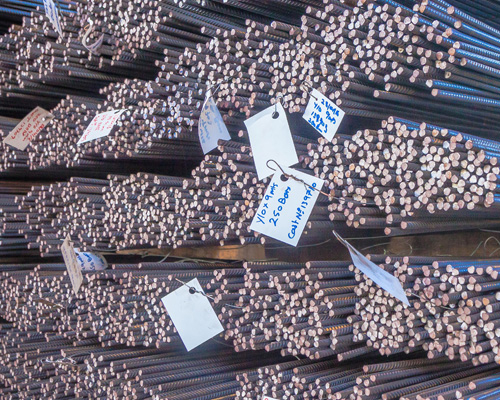

Reinforcing Steel

Reinforcing steel

Sizes: R6 & Y8, 10, 12, 16, 20, 25, 32, 40

Specification:

  • MS 10 (BS 4449)
  • MS 34 & 35 (BS 4482 & 4483)
  • All products are MSB certified

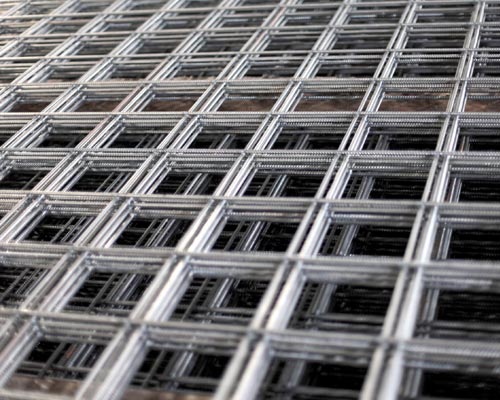

Mesh Reinforcing

mesh-reinforcing2

A142-6mm/200/4.8 x 2.4m

A252-8mm/200/4.8 x 2.4m

A393-10mm/200/4.8 x 2.4m

Construction Pine Wood & Shutter Board

Shutter board Marine plywood

WBP BLACK SHUTTERING

Black Plywood 2440mm x 400mm x 18mm
8′ x 4′ x 18mm

Construction pine wood

MALAGASY PINE WOOD

50mm x 25mmx 2.9m
75mm x 50mm x  2.9m
150mm x 18mm x 2.9m
200mm x 50mm x 2.9m

Cut & Bend Reinforcing Steel

Shape Codes Cut & Bend Reinforcing Steel

Kosto Ltd also provides cut and bend services according to international standards (BS 4449 & BS 8666). This alternative solution to traditional unscientific cutting and bending on site has proven to be highly effective and encompasses numerous advantages such as:

1. Rebars that are cut and bent according to the quantity,
shape and length required.
2. Consistent Quality and Accuracy
3. Lower material & labour costs
4. Less wastage
5. Less Time consuming compared to traditional methods
6. Better cash flow management
7. Less warehousing costs and reduce space requirements on site
8. Involvement of resident civil engineers

Furthermore, our after sales service remain as one of our priorities in taking care of our valued customers such that we provide various reports on supply for  better documentation and management control and facilitation of QS and final account procedures.

Cut and Bend services can be subjected to clients needs as to either provide their own bar bending schedules or appeal to our resident civil engineers services as well.

Fencing

fencing-details-1

Bestfence in conjunction with BRC Mesh Reinforcing has developed the BRC-thru® range of welded mesh panel systems to provide barrier solutions to a wide and varied range of applications including domestic, school, road, sports facility and security installations.

Multiple  bends provide increased rigidity
Choice of plain, electric wire top or multi-spike
Unique clamping system ensures maximum wire contact

Galvanized or coated finish
Anti tamper fixator solution
Wires pretensioned prior to welding

700 MPa high tensile wire
Vertical wire arrangement
Highly transparent

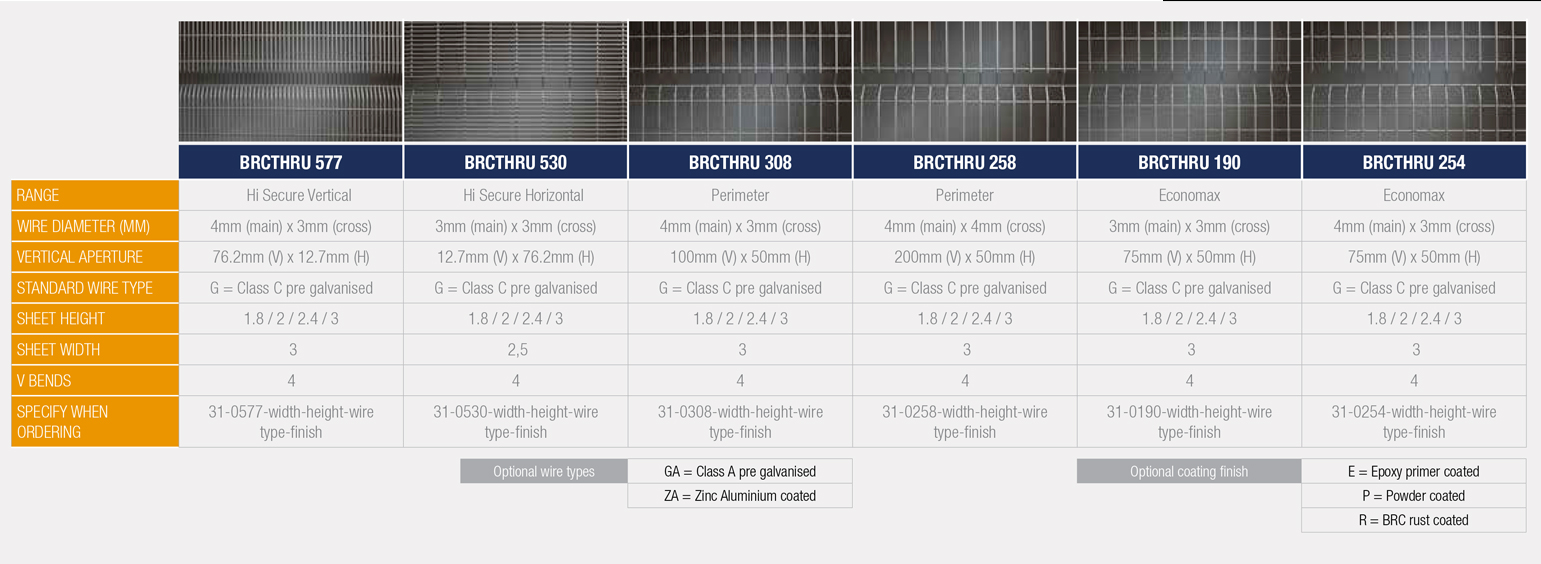

PRODUCT SPECIFICATIONS

Rugged secure perimeter fencing solutions that enhance the value of property assets. Aesthetically pleasing, offers maximum protection and can be fitted as a complete system or retrofitted to enhance existing perimeter fences.

fencing-details-3

Lattice Girders

Lattice girders serve some of the best functions in construction support systems, and offer an economical alternative to other support methods for a wide variety of applications. Lattice girders are light and easy to install and can be handled easily without special equipment.

Lattice girders have been tried and tested with great success in numerous operations. The product is manufactured from cold drawn high tensile black deformed or smooth wire.

Unique benefits and application of Lattice girders

Lightweight and easy to install
Suitable for fence posts, roof trusses, purlins and pre-cast beam reinforcement
Quality assurance €“ manufactured to the ISO9001:2008 Specifications

lattice-brc-thru-frencing-best-fence

Lattice girders wires are welded at 200mm c/c along the lattice length.

Reinforcing Steel Binding Wire

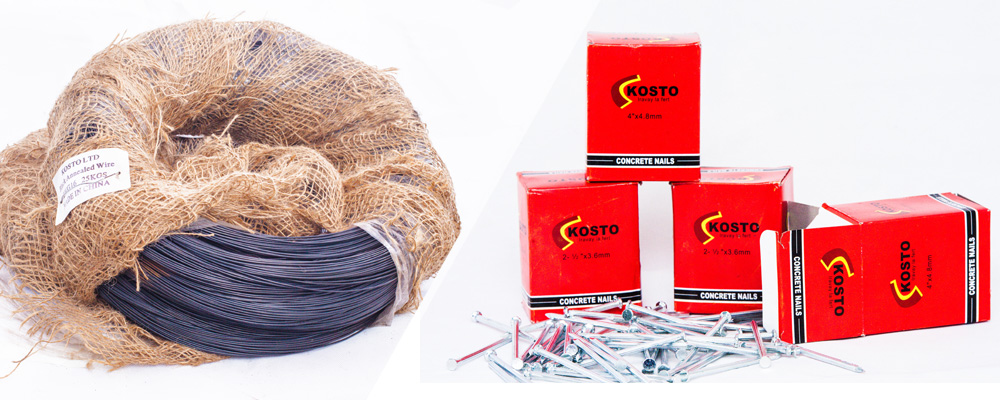

Concrete and wire nails

SQUARE TUBE – BLACK

32mm x 32mm x 1.5mm x 5.5m

SQUARE BARS

25mm x 25mm x 6m

RECTANGULAR TUBE – PRE GALVANISED

50mm x 25mm x 1.5mm x 5.5m

75mm x 40mm x 1.5mm x 5.5m

EQUAL ANGLES – GALVANISED

30mm x 30mm x 5mm x 6m

EQUAL ANGLES – GALVANISED

19mm x 19mm x 1.5mm x 5.5M
25mm x 25mm x 1.5mm x 5.5M
38mm x 38mm x 1.5mm x 5.5M
50mm x 25mm x 1.5mm x 5.5M
50mm x 50mm x 1.5mm x 5.5M

GALV WATER PIPES BSS 1387

1″ x 2.00mm x 5.5m
1.50″ x 2.3mm x 5.5m

EQUAL ANGLES – BLACK

25mm x 25mm x 5mm x 6m
30mm x 30mm x 3mm x 6m
38mm x 38mm x 5mm x 5.8m

MILD STEEL CHANNEL BARS

75mm x 40mm x 6m (3′ x 1.5′)
100mm x 50mm x 6m(4′ x 2′)
150mm x 75mm x 6m(6 ‘x 3’)

NAILS – 20kg & 25kg BOX

Wire Nail 2′- 4′ – 20kg
Concrete 2′- 4′ – 25kg

BLACK ANNEALED WIRE – 25kg/ roll

16 BWG – 16gauge
21 BWG – 21gauge

MILD STEEL PLATES

2440mm x 1220mm x 1.5mm
2440mm x 1220mm x 3.0mm
2440mm x 1220mm x 4.5mm
2440mm x 1220mm x 10mm
2440mm x 1220mm x 12mm

ROUND MILD BARS

Round Mild Bar 12mm x 5.5m
Round Mild Bar 16mm x 5.5m

Reinforcing Steel Splicing Solutions

THREE-STEP MANUFACTURING PROCESS

Cutting

1. Cutting

The end of the reinforcing bar is sawn square.

Cold-forging

2. Cold forging

The sawn end of the reinforcing bar is enlarged by a patented cold forging process. The core diameter of the bar is increased to a pre-determined diameter.

Threading

3. Threading

Finally, the thread is mechanically cut onto the enlarged end of the bar..

The BARTEC® mechanical splice system consists in enlarging the reinforcing bar ends by cold-upsetting prior to threading them. The bars are cut square before the enlarging operation. The combination of the square cutting and the cold-upsetting reduces the length of the bar by approximately 40 to 75 mm on each end, depending on the bar size. Extra-long threads are used to assist alignment, or when joining bars that cannot be turned. All applications can thus be fulfilled by only one model of coupler, thereby reducing inventory management to a minimum. Bar end preparation must be done exclusively with machines provided by Dextra. Consult us for technical details of our range of machinery.

Splicing methods

Standard-splice

Standard splice

Easy connection by bar rotation until full thread engagement.

Parallel thread :

No risk of thread mis-match.

No risk of cross-threading.

Position-splice

Position splice

Even when both bars cannot be turned, the Bartec system uses a standard Bartec coupler (exactly the same as used for type A):

The coupler is fully engaged onto the extended thread of the connecting bar. The assembly is simply completed by butting the bars end to end and screwing back the coupler onto the first bar until full engagement.

Type-C-assembly

Type C assembly method

Type C assembly method is similar to Type B, with the addition of a lock-nut to maintain the second bar in position

Caging-splice

Caging splice

To connect cages that haven’t been pre-fabricated together or sets of bars that cannot be brought butt to butt, Bartec Caging Splice is your solution.

Both bars are threaded with a standard Bartec thread, and then the free rotating elements of the Caging Splice will restore thread continuity and make the connection.

Transition-splice

Transition splice

When there is a need to splice bars of different sizes, it is allowable in most cases to reduce the size of the larger bar and to use a standard coupler.

However the Bartec system also proposes special transition couplers that conveniently avoid the difficult task of planning in advance the need of transitions

End-anchors

End anchors

A convenient alternative to hooked bars to provide end anchorages in congested areas. Bartec standard anchorage heads are circular and have a net bearing area of 4 times or 9 times the cross-section of the bar, but can also be made to order in other shapes or dimensions to fit the application requirement.

Weldable-couplers

Weldable couplers

For composite construction where concrete reinforcement bars must be welded to structural steel, use Bartec weldable couplers, which are specially made from low carbon steel and which have a large chamfer for bevel welding.
